PRODUCT OVERVIEW

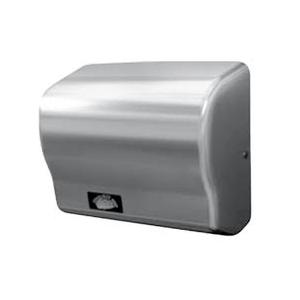

WARM AIR QUIET COMMERCIAL HAND DRYER

THE GX1-C AUTOMATIC HAND DRYERS OFFER THE BEST VALUE IN A MAINTENANCE-FREE HAND DRYER. THE GX1-C IS DESIGNED TO PROVIDE MANY YEARS OF TROUBLE-FREE SERVICE. THE STYLISH, COMPACT DESIGN PROVIDES GREAT PERFORMANCE WHILE CONSUMING LESS ELECTRICITY. THE ECONOMICAL global SERIES GX1-C CHROME HAND DRYER PROVIDES A QUIET AND COMPACT DESIGN TO FIT ANY BUDGET. Heavy-Duty, One-Piece Cover Options

• Flame-retardant white ABS
• Steel with white epoxy finish (M)
• Steel with satin chrome finish (C) Vandal Resistant
• Tamper-resistant screws secure cover to base. Air intake vents are shielded for additional safety. Motor
• Permanently lubricated, maintenance-free, brushless induction motor with automatic resetting thermal protector. 1/12 HP, 3100 RPM. Automatic Sensor
• Energy-efficient, microprocessor-controlled sensor turns dryer on when hands are under the outlet for up to 60 seconds. Standby power is only one watt. Features RoHS compliant lead-free design. Heating Element
• Constructed of NiChrome resistance wire with thermal protector. Heating element operates in the black range for maximum life. 2-Year Limited Warranty
• Includes same-day factory repair or part replacement. See owner’s manual for details.
  Hand Dryer Placement
• Dryers should be placed at least 2 feet apart and at least 12” from washbasin.
• Do not install dryer over washbasin.
• Automatic dryers should be at least 18” above any projection which may interfere with the operation of the automatic sensor.
• Average traffic washroom..............1 dryer per 2 washbasins
• Heavy traffic washroom..................1 dryer per washbasin
• 54” wash fountain...........................4 dryers per sink

  Mounting Heights (From floor to bottom of hand dryer):
• Men 44"
• Women 42"
• Children 32-42"
• Handicapped 36”




  COMPONENTS AND MATERIALS

• Cover One-piece heavy duty, flame retardant ABS polymer with white finish
• Optional one-piece 18 gauge steel cover finished with electrostatically applied, chip-resistant white epoxy finish (M), or chrome plated satin finish (C)
• Motor Permanently lubricated, maintenance-free, brushless induction motor with automatic resetting thermal protector. 1/12 HP, 3200 RPM
• Automatic Sensor 100% solid state design eliminates relay contact failures. Microprocessor controlled infrared sensor turns dryer on when hands are under the air outlet. Dryer turns off when hands are removed. Override turns off in 80 seconds if hands are not removed
• Heating Element Constructed of NiChrome resistance wire with automatic resetting thermostat. Heating element operates in the black range for maximum life
• Tamper Resistant – Two tamper resistant screws secure cover to base

WARRANTY

2 year

• Cover One-piece heavy duty, flame retardant ABS polymer with white finish
• Optional one-piece 18 gauge steel cover finished with electrostatically applied, chip-resistant white epoxy finish (M), or chrome plated satin finish (C)
• Motor Permanently lubricated, maintenance-free, brushless induction motor with automatic resetting thermal protector. 1/12 HP, 3200 RPM
• Automatic Sensor 100% solid state design eliminates relay contact failures. Microprocessor controlled infrared sensor turns dryer on when hands are under the air outlet. Dryer turns off when hands are removed. Override turns off in 80 seconds if hands are not removed
• Heating Element Constructed of NiChrome resistance wire with automatic resetting thermostat. Heating element operates in the black range for maximum life
• Tamper Resistant – Two tamper resistant screws secure cover to base
