PRODUCT OVERVIEW

• Warm air hand dryer.
• Push-button operated
• Maximum robustness and power
• Vandal-proof
• Suitable for very high traffic facilities.
• 10 Year Warranty
• It normally goes along with a soap dispenser.

CERTIFICATES AND QUALIFICATIONS

UL comply with UL499 norm.

COMPONENTS AND MATERIALS

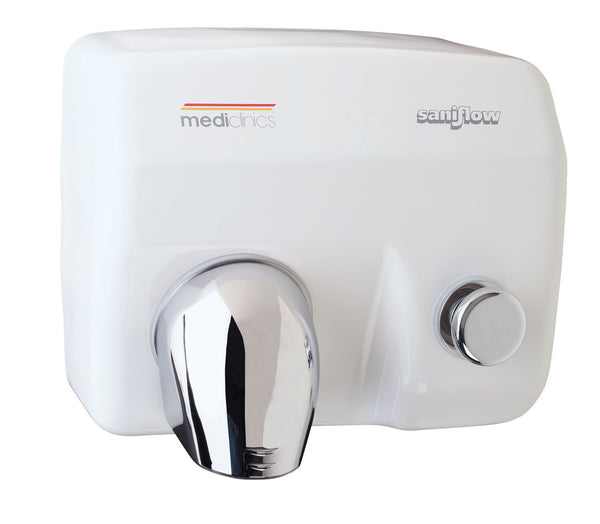

• Steel one-piece cover with white porcelain enamelled coating 5/64"(1,9 mm) thick
• Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special saniflow ® key wrench.
• Base in aluminum, 1/8" (3 mm) thick, with 4 x 5/16" (8 mm) holes for wall mounting
• Fire resistant plastic UL 94-VO fan scroll
• Motor, universal, 5,500 rpm, B class, included a 4 A fuse with sealed and self-lubricated ball bearings
• Aluminum centrifugal turbine with double symmetrical inlet
• Waved wire NiCr heating element that incorporates a safety thermostat
• Nozzle in chrome plated zamak, 22 _ thick.
• Push -button in chrome plated zamak, 22 _ thick

OPERATIONS

UL comply with UL499 norm.

SPECIFICATIONS

Surface mounted vandal resistant hand dryer shall be fabricated with one-piece 5/64" thick metal sheet cover, with glazed porcelain coated. The back base shall be aluminum, 1/8" thick and with 4 holes for wall mounting. Cover shall be equipped with a chromed-plated Fixed nozzle for hand drying.

The dryer shall be activated using the chrome-plated zamak 22 _ thick Push-button Or Sensor Option that activates an electromechanical timer with a 34 second cycle before switching dryer off automatically. Motor shall be 1/3 hp, 5,500 r.p.m. , universal type, with a 4A fuse with sealed, self- lubricated ball bearing;

The waved wire NiCr heating element should incorporate a thermal limiter which will switch off by a temperature of 176 °F (80°C). The fan should be an aluminum centrifugal turbine with double symmetrical inlet, and the fan scroll shall be made of a fire resistant plastic UL 94-V0. Dryer shall deliver 290 CFM of air at 128 °F (53 °C) and 5,512 LFM velocity during user controlled drying cycle.

The dryer shall have a total power of 1,850 W with a consumption 16A. Noise level should be 70 dB. Overall dimensions shall be 11"W x 9-3/4"H x 8-1/4"D. Unit shall be UL listed, and /or VDE approved and CE marked.

TECHNICAL SPECIFICS

450

• Steel one-piece cover with white porcelain enamelled coating 5/64"(1,9 mm) thick
• Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special saniflow ® key wrench.
• Base in aluminum, 1/8" (3 mm) thick, with 4 x 5/16" (8 mm) holes for wall mounting
• Fire resistant plastic UL 94-VO fan scroll
• Motor, universal, 5,500 rpm, B class, included a 4 A fuse with sealed and self-lubricated ball bearings
• Aluminum centrifugal turbine with double symmetrical inlet
• Waved wire NiCr heating element that incorporates a safety thermostat
• Nozzle in chrome plated zamak, 22 _ thick.
• Push -button in chrome plated zamak, 22 _ thick
