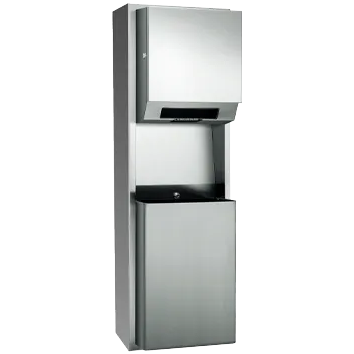

ASI 046924AC-9 Automatic Combination Commercial Paper Towel Dispenser/Waste Receptacle, Surface-Mounted, Stainless Steel, Updated Part Number: 646924AC-9

Updated Part Number: 646924AC-9Proximity sensing no-touch unit dispenses a pre-set length per cycle from 8" or 9 wide standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing. 12 gal. (46 liters) disposal capacity. Surface mounted with stainless steel collar. Powered by C-UL-US and CE approved internal low-voltage adapter (supplied) using 110-120VAC 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone.The ASI 046924AC-9 Paper Towel Dispenser and Waste Receptacle allows you to offer paper towels and a place to dispose of them in one convenient unit which can help reduce messes in your commercial restroom facilities. . Designed for surface mounting the unit measures 17-1/4 inches in length by 56 inches in height and extends from the wall by 10 inches once installed. The paper towel dispenser holds rolls of paper towels that measure 8 inches in diameter by 8 or 9 inches in length and are 800 feet long. A 4-inch diameter stub roll is also included. Rather than a mechanical lever the unit dispenses towels with a touch-free proximity sensor powered by a low voltage adapter. The lower waste container has a 12 gallon capacity. Fabricated out of 18-gauge and 22-gauge stainless steel the unit has an attractive No. 4 satin finish. A multi-staked full-length piano hinge is used to attach the door to the cabinet. Both the towel dispenser and waste receptacle are secured with a keyed tumbler lock to prevent theft and vandalism.

Tech Data Sheet
